Cryogenic Accelerometer ICP® Model 351B11
Cryogenic, quartz shear ICP® accel., 5 mV/g, 1 to 10k Hz,
5-44 side conn. (-196 to +121C).
- Sensitivity: (±10%) 5 mV/g (0.51 mV/(m/s²))
- Measurement Range: ±300 g pk (±2943 m/s² pk)
- Broadband Resolution: 0.01 g rms (0.1 m/s² rms)
- Frequency Range: (±5%)1 to 10000 Hz
- Sensing Element: Quartz
- Weight: 0.07 oz (2.0 gm)
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
5 mV/g |
0.51 mV/(m/s²) |
|
Measurement Range |
±300 g pk |
±2943 m/s² pk |
|
Frequency Range (±5 %) |
1 to 10000 Hz |
1 to 10000 Hz |
|
Frequency Range (±10 %) |
|
|
|
Frequency Range (±3 dB) |
|
|
|
Resonant Frequency |
≥40 kHz |
≥40 kHz |
|
Broadband Resolution (1) [2] |
0.01g rms |
|
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity [3] |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±10000 g pk |
±98100 m/s² pk |
|
Temperature Range (Operating) |
-320 to +250 °F |
-196 to +121 °C |
|
Temperature Response [2] |

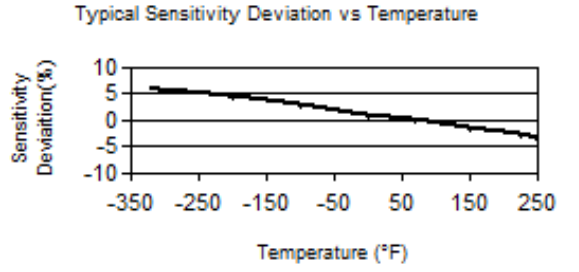

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.002 g/µε |
0.02 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
3 to 10 VDC |
3 to 10 VDC |
|
Discharge Time Constant |
0.5 to 2.0 sec |
0.5 to 2.0 sec |
|
Spectral Noise (10 Hz) [2] |
400 µg/√Hz |
3924 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
120 µg/√Hz |
1177 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
30 µg/√Hz |
294 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Weight [2] |
0.07 oz |
2.0 gm |
|
Sensing Element |
Quartz |
Quartz |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
5-44 Coaxial |
5-44 Coaxial |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
5-40 male |
5-40 male |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
Optional Versions
(J) Ground Isolated
|
|
ENG |
SI |
|
Frequency Range |
8000 Hz |
|
|
Frequency Range |
15000 Hz |
|
|
Resonant Frequency |
36 kHz |
|
|
Size - Hex |
|
9.5 mm |
|
Size - Height |
|
14.0 mm |
|
Electrical Isolation |
>100000000 Ohm |
|
(M) Metric Mount
|
|
ENG |
SI |
|
Mounting Thread |
M3 x 0.50 Male |
|
