Cryogenic Accelerometer ICP® Model 351B31
Cryogenic, quartz shear ICP® accel., 50 mV/g, 1 to 4k Hz,
10-32 side conn. (-196 to +121C).
- Sensitivity: (±10%)50 mV/g (5.10 mV/(m/s²))
- Measurement Range: ±30 g pk (±294 m/s² pk)
- Broadband Resolution: 0.002 g rms (0.02 m/s² rms)
- Frequency Range: (±5%)1 to 4000 Hz
- Sensing Element: Quartz
- Weight: 0.7 oz (20 gm)
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
50 mV/g |
5.1 mV/(m/s²) |
|
Measurement Range |
±30 g pk |
±294 m/s² pk |
|
Frequency Range (±5 %) |
1 to 4000 Hz |
1 to 4000 Hz |
|
Frequency Range (±10 %) |
|
|
|
Frequency Range (±3 dB) |
|
|
|
Resonant Frequency |
≥22 kHz |
≥22 kHz |
|
Broadband Resolution (1) [2] |
0.002 g rms |
|
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity [3] |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±2000 g pk |
±19620 m/s² pk |
|
Temperature Range (Operating) |
-320 to +250 °F |
-196 to +121 °C |
|
Temperature Response [2] |

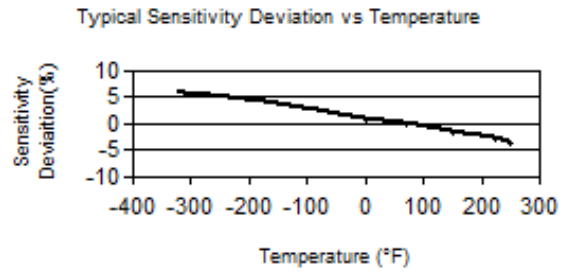

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.0002 g/µε |
0.002 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
3 to 10 VDC |
3 to 10 VDC |
|
Discharge Time Constant |
>0.5 sec |
>0.5 sec |
|
Spectral Noise (10 Hz) [2] |
44 µg/√Hz |
431 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
12 µg/√Hz |
121 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
3.2 µg/√Hz |
31 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Weight [2] |
|
20 gm |
|
Sensing Element |
Quartz |
Quartz |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
10-32 Female |
10-32 Female |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder |
1 |
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu |
1 |
Optional Versions
(J) Ground Isolated
|
|
ENG |
SI |
|
Frequency Range |
4000 Hz |
|
|
Frequency Range |
6000 Hz |
|
|
Resonant Frequency |
18 kHz |
|
|
Size - Hex |
|
19.1 mm |
|
Size - Height |
|
22.9 mm |
|
Electrical Isolation |
>100000000 Ohm |
|
