Triaxial ICP® Accelerometer Model HT356A43
Triaxial ICP® accel., 10 mV/g, 500 g, 1/4-28 4-pin connector,
Adhesive mount, TEDS 1.0, temp. to +325 °F
- Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
- Frequency Range: (+/-10%) 0.4 to 10000 Hz
- Electrical Connector: 1/4-28 4-Pin
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
10.0 mV/g |
1.02 mV/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 %) |
0.7 to 7000 Hz |
0.7 to 7000 Hz |
|
Frequency Range (±10 %) |
0.4 to 10000 Hz |
0.4 to 10000 Hz |
|
Resonant Frequency |
≥30 kHz |
≥30 kHz |
|
Broadband Resolution (1) [2] |
0.0008 g rms |
0.008 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤6 % |
≤6 % |
|
TEDS Compliant (Per IEEE 1451.4) |
yes |
yes |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050m/s² pk |
|
Temperature Range (Operating) |
-65 to +250 °F |
-54 to +121 °C |
|

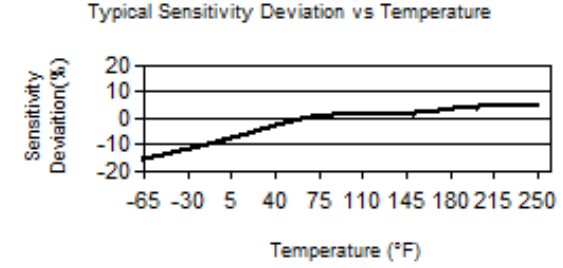

Temperature Response [2] |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.001 g/µε |
0.01 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
Discharge Time Constant |
|
|
|
Settling Time (within 10% of bias) |
<5 sec |
<5 sec |
|
Spectral Noise (1 Hz) [2] |
300 µg/√Hz |
2943 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
50 µg/√Hz |
491 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
35 µg/√Hz |
343 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
8 µg/√Hz |
79 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
|
10.2 mm |
|
Size - Length |
|
19.1 mm |
|
Size - Width |
|
10.2 mm |
|
Weight [2] |
|
4.2 gm |
|
Electrical Connector |
1/4-28 4-Pin |
1/4-28 4-Pin |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Adhesive |
Adhesive |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
080A90 |
Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) |
|
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
Optional Versions
(HT) High temperature, extends normal operation temperatures
|
|
ENG |
SI |
|
Sensitivity (+/-10 %) |
10 mV/g |
1.02 mV/(m/s²) |
|
Frequency Range (±10 %) |
3.4 to 10000 Hz |
|
|
Frequency Range (±5 %) |
4.7 to 7000 Hz |
|
|
Discharge Time Constant |
0.1 to 0.9 sec |
|
|
Temperature Range |
-65 to +325 °F |
-54 to +163 °C |
|
Output Bias Voltage |
7 to 16 VDC |
|
(J) Ground Isolated
|
|
ENG |
SI |
|
Size - Width |
0.47 in |
11.8 mm |
|
Weight |
0.20 oz |
5.7 gm |
|
Electrical Isolation |
≥100000000 Ohm |
|
|
Size - Height |
0.47 in |
11.8 mm |
|
Size - Length |
0.78 in |
19.8 mm |
