Hight Temperature Charge Pressure Sensors Model 176A07
Charge output pressure sensor with UHT-12™ element, 7.0 pC/psi,
single ended with a 10-32 connector. IECEx hazardous approved.
- Measurement Range: 725 psi (50 bar)
- Sensitivity: (±20%) 7 pC/psi (101.5 pC/bar)
- Resonant Frequency: >=100 kHz (>=100 kHz)
- Weight: 2.0 oz (57 gm)
|
|
ENG |
SI |
|
Performance |
||
|
Sensitivity (±20 %) |
7 pC/psi |
101.5 pC/bar |
|
Measurement Range |
725 psi |
50 bar |
|
Maximum Pressure |
4000 psi |
275.8 bar |
|
Resonant Frequency |
≥100 kHz |
≥100 kHz |
|
Transverse Resonance |
>15 kHz |
>15 kHz |
|
Frequency Response (±5 %) [1] |
20 kHz |
20 kHz |
|
Non-Linearity [2] |
≤1.0 % FS |
≤1.0 % FS |
|
Environmental |
||
|
Maximum Shock (Axial) [5] |
2000 g pk |
19600 m/s² pk |
|
Acceleration Sensitivity [4] |
0.01 psi/g |
|
|
Acceleration Sensitivity [3] |
0.004 psi/g |
|
|
Temperature Range (Operating) |
-94 to +1200 °F |
-70 to +650 °C |
|
Temperature Range (Connector) |
-76 to +900 °F |
-60 to +483 °C |
|
Radiation Exposure Limit (Integrated Neutron Flux) |
1E10 N/cm² |
1E10 N/cm² |
|
Radiation Exposure Limit (Integrated Gamma Flux) |
1E8 rad |
1E8 rad |
|
Electrical |
||
|
Output Polarity |
Positive |
Positive |
|
Capacitance [2] |
250 pF |
250 pF |
|
Resistance(Pin-Pin) (Room Temp) |
≥1000000000000 Ohm |
≥1000000000000 Ohm |
|
Resistance(Pin-Case) (Room Temp) |
≥1000000000000 Ohm |
≥1000000000000 Ohm |
|
Resistance(Pin-Pin) (1200°F/650°C) |
≥50000 Ohm |
≥50000 Ohm |
|
Resistance(Pin-Case) (1200°F/650°C) |
≥50000 Ohm |
≥50000 Ohm |
|
Physical |
||
|
Sensing Element |
UHT-12™ |
UHT-12™ |
|
Sensing Geometry |
Compression |
Compression |
|
Housing Material |
Nickel Alloy |
Nickel Alloy |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Cable Type |
Hardline |
Hardline |
|
Cable Length |
3 ft |
0.91 m |
|
Weight (with clamp nut) [3] |
2.0 oz |
57 gm |

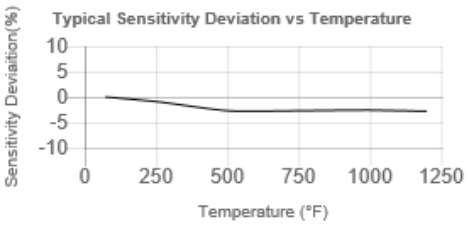

* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Upper frequency response is calculated from Resonant Frequency.
[2] Zero-based, least-squares line method.
[3] Typical.
[4] Maximum.
[5] Half-sine pulse duration, 1 msec.
[6] See PCB Declaration of Conformance 058 for details.
Accessories
|
Supplied |
||
|
PCS-1 |
Calibration of dynamic pressure sensors at 20% intervals to full scale, max 15 kpsi range. |
0 |
|
060A25 |
Clamp nut, SS 9/16-18 9/16" hex |
1 |
|
40890-04 |
|
3 |
