Accelerometer ICP® Model 352A24
Platinum Stock Products; Miniature, lightweight (0.8 gm) ceramic shear ICP® accel.,
100 mV/g, 1 to 8k Hz, aluminum hsg, 10-ft detachable cable.
- Sensitivity: (±10%) 100 mV/g (10.2 mV/(m/s²))
- Measurement Range: ±50 g pk (±490 m/s² pk)
- Broadband Resolution: 0.0002 g rms (0.002 m/s² rms)
- Frequency Range: (±5%) 1.0 to 8000 Hz
- Sensing Element: Ceramic
- Weight: 0.8 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
100 mV/g |
10.2 mV/(m/s²) |
|
Measurement Range |
±50 g pk |
±490 m/s² pk |
|
Frequency Range (±5 %) |
1.0 to 8000 Hz |
1.0 to 8000 Hz |
|
Frequency Range (±10 %) |
0.8 to 10000 Hz |
0.8 to 10000 Hz |
|
Frequency Range (±3 dB) |
|
|
|
Resonant Frequency |
≥30 kHz |
≥30 kHz |
|
Broadband Resolution (1) [2] |
0.0002 g rms |
|
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range (Operating) |
-65 to +250 °F |
-54 to +121 °C |
|
Temperature Response [2] |

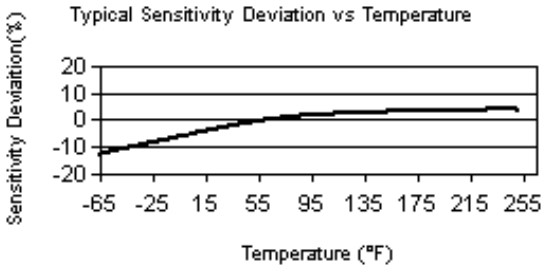

See Graph %/°F |

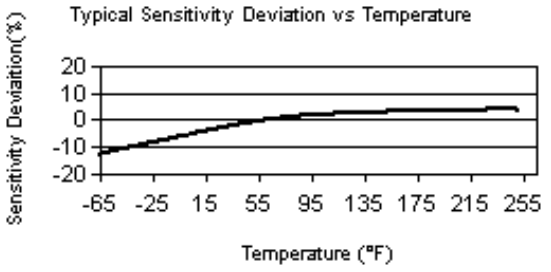

See Graph %/°F |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤300 Ohm |
≤50 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
7 to 12 VDC |
|
Discharge Time Constant |
0.4 to 1.5 sec |
0.9 to 3.5 sec |
|
Settling Time |
<8 sec |
<3.5 sec |
|
Spectral Noise (1 Hz) [2] |
80 µg/√Hz |
785 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
15 µg/√Hz |
147 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
4 µg/√Hz |
39 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
1 µg/√Hz |
9.8 (µm/sec2)/√Hz |
|
Electrical Isolation (Base) |
≥100000000 Ohm |
≥100000000 Ohm |
|
Physical |
|
|
|
Size - Height |
|
4.8 mm |
|
Size - Length |
|
12.2 mm |
|
Size - Width |
|
7.1 mm |
|
Weight [2] |
|
0.8 gm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Anodized Aluminum |
Anodized Aluminum |
|
Sealing |
Epoxy |
Epoxy |
|
Electrical Connector |
3-56 Coaxial Jack |
3-56 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Adhesive |
Adhesive |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
030А10 |
Miniature, low-noise, blue coaxial cable, 10-ft, 3-56 plug to 10-32 plug |
|
|
039A28 |
One-piece removal tool (for Model 352A24, 357A07) |
|
(RH) RoHS Compliant
|
Accessories |
|||
|
Supplied |
RH030A10 |
RH030A10 |
1 |
