Accelerometer ICP® Model 352C04

Platinum Stock Products; General purpose, ceramic shear ICP® accel.,
10 mV/g, 0.5 to 10k Hz, 10-32 top conn.

Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
Measurement Range: ±500 g pk (±4900 m/s² pk)
Broadband Resolution: 0.0005 g rms (0.005 m/s² rms)
Frequency Range: (±5%)0.5 to 10000 Hz
Sensing Element: Ceramic
Weight: 0.20 oz (5.8 gm)

	ENG	SI
Performance
Sensitivity (±10 %)	10 mV/g	1.02 mV/(m/s²)
Measurement Range	±500 g pk	±4900 m/s² pk
Frequency Range (±5 %)	0.5 to 10000 Hz	0.5 to 10000 Hz
Frequency Range (±10 %)	0.3 to 15000 Hz	0.3 to 15000 Hz
Resonant Frequency	≥50 kHz	≥50 kHz
Broadband Resolution (1) [2]	0.0005 g rms	0.005 m/s² rms
Non-Linearity [1]	≤1 %	≤1 %
Transverse Sensitivity	≤5 %	≤5 %
Environmental
Overload Limit (Shock)	±5000 g pk	±49000 m/s² pk
Temperature Range (Operating)	-65 to +250 °F	-54 to +121 °C

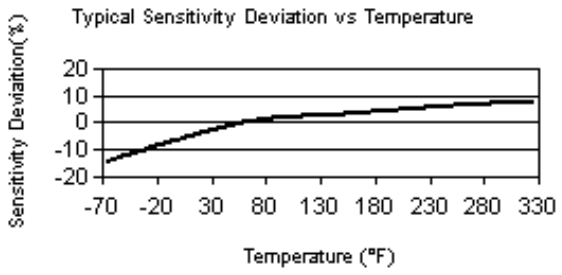

Temperature Response [2] [3]	See Graph %/°F	See Graph %/°F
Base Strain Sensitivity [2]	0.003 g/µε	0.029 (m/s²)/µε
Electrical
Excitation Voltage	18 to 30 VDC	18 to 30 VDC
Constant Current Excitation	2 to 20 mA	2 to 20 mA
Output Impedance	≤100 Ohm	≤100 Ohm
Output Bias Voltage	7 to 12 VDC	7 to 12 VDC
Discharge Time Constant	1.0 to 2.5 sec	1.0 to 2.5 sec
Settling Time	<10 sec	<10 sec
Spectral Noise (1 Hz) [2]	110 µg/√Hz	1080 (µm/sec²)/√Hz
Spectral Noise (10 Hz) [2]	25 µg/√Hz	245 (µm/sec²)/√Hz
Spectral Noise (100 Hz) [2]	8 µg/√Hz	78 (µm/sec²)/√Hz
Spectral Noise (1 kHz) [2]	4 µg/√Hz	39 (µm/sec²)/√Hz
Physical
Size - Height	0.88 in	22.4 mm
Size - Hex	0.44 in	22.4 mm
Weight [2]	0.20 oz	5.8 gm
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Titanium	Titanium
Sealing	Hermetic	Hermetic
Electrical Connector	10-32 Coaxial Jack	10-32 Coaxial Jack
Electrical Connection Position	Top	Top
Mounting Thread	10-32 Female	10-32 Female
Mounting Torque	10 to 20 in-lb	113 to 226 N-cm

* All specifications are at room temperature unless otherwise specified.

Specification Notes

[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[2] Typical.
[4] See PCB Declaration of Conformance PS023 for details.

Accessories

Supplied
ACS-1	Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable	1
080A	Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish	1
080A109	Petro Wax, one square, 1" x 1" x 0.25"	1
081B05	Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder	1
M081B05	Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu	1

Optional Versions

(HT) High temperature, extends normal operation temperatures

	ENG	SI
Frequency Range (±5 %)	5 to 10000
Frequency Range (±10 %)	5 to 15000
Temperature Range	-65 to +325	-54 to +163
Discharge Time Constant	0.1 to 0.3
Spectral Noise	200	1962
Spectral Noise	30	294
Output Bias Voltage	10 to 15
Excitation Voltage	22 to 30 VDC

(J) Ground Isolated

	ENG	SI
Electrical Isolation	>100000000 Ohm
Size - Height	0.93 in	23.6 mm
Weight	0.21 oz	6.0 gm
Frequency Range	9000 Hz
Frequency Range	14000 Hz
Resonant Frequency	40 kHz
Size - Hex	0.44 in	11.2 mm

(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4

	ENG	SI
Temperature Range	-10 to +250 °F	-23 to +121 °C
Output Bias Voltage	7.5 to 13 VDC
Excitation Voltage	20 to 30 VDC

(TLA) TEDS LMS International - Free Format

	ENG		SI
Excitation Voltage	20 to 30 VDC
Output Bias Voltage	7.5 to 13 VDC
Temperature Range	-10 to +250 °F	-23 to +121 °C

(TLB) TEDS LMS International - Automotive Format

	ENG		SI
Output Bias Voltage	7.5 to 13 VDC
Temperature Range	-10 to +250 °F	-23 to +121 °C
Excitation Voltage	20 to 30 VDC

(TLC) TEDS LMS International - Aeronautical Format

	ENG		SI
Excitation Voltage	20 to 30 VDC
Output Bias Voltage	7.5 to 13 VDC
Temperature Range	-10 to +250 °F	-23 to +121 °C

(W) Water Resistant Cable
