Accelerometer ICP® Model 352C33
Platinum Stock Products; High sensitivity, ceramic shear ICP® accel.,
100 mV/g, 0.5 Hz to 10k Hz, 10-32 side conn.
- Sensitivity: (±10%)100 mV/g (10.2 mV/(m/s²))
- Measurement Range: ±50 g pk (±490 m/s² pk)
- Broadband Resolution: 0.00015 g rms (0.0015 m/s² rms)
- Frequency Range: (±5%)0.5 to 10000 Hz
- Sensing Element: Ceramic
- Weight: 0.20 oz (5.8 gm)
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
100 mV/g |
10.2 mV/(m/s²) |
|
Measurement Range |
±50 g pk |
±490 m/s² pk |
|
Frequency Range (±5 %) |
0.5 to 10000 Hz |
0.5 to 10000 Hz |
|
Frequency Range (±10 %) |
0.3 to 15000 Hz |
0.3 to 15000 Hz |
|
Resonant Frequency |
≥50 kHz |
≥50 kHz |
|
Broadband Resolution (1) [2] |
0.0005 g rms |
0.005 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity [3] |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49000 m/s² pk |
|
Temperature Range (Operating) |
-65 to +200 °F |
-54 to +93 °C |
|
Temperature Response [2] [3] |

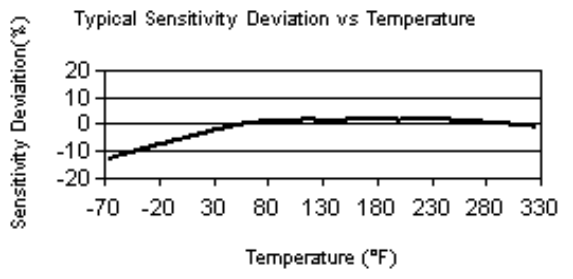

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.003 g/µε |
0.029 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
7 to 12 VDC |
7 to 12 VDC |
|
Discharge Time Constant |
1.0 to 2.5 sec |
1.0 to 2.5 sec |
|
Settling Time |
<10 sec |
<10 sec |
|
Spectral Noise (1 Hz) [2] |
39 µg/√Hz |
380 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
11 µg/√Hz |
110 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
3.4 µg/√Hz |
33 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
1.4 µg/√Hz |
14 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Size - Height |
|
15.7 mm |
|
Size - Hex |
0.44 in |
11.2 mm |
|
Weight [2] |
0.20 oz |
5.8 gm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
10-32 Female |
10-32 Female |
|
Mounting Torque |
10 to 20 in-lb |
113 to 226 N-cm |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[2] Typical.
[4] 200°F to 325°F data valid with HT option only.
[2] Typical.
[5] TEDS option adds 1.0 VDC to bias voltage.
[2] Typical.
[6] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
080A |
Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder |
1 |
|
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu |
1 |
Optional Versions
(HT) High temperature, extends normal operation temperatures
|
|
ENG |
SI |
|
Output Bias Voltage |
10 to 15 VDC |
|
|
Frequency Range (±5 %) |
6 to 10000 Hz |
|
|
Frequency Range (±10 %) |
4.5 to 15000 Hz |
|
|
Temperature Range |
-65 to +325 |
-54 to +163 |
|
Discharge Time Constant |
0.07 to 0.15 sec |
|
|
Spectral Noise |
58 µg/√Hz |
570 (µm/sec2)/√Hz |
|
Spectral Noise |
9.8 µg/√Hz |
96 (µm/sec2)/√Hz |
|
Spectral Noise |
41 µg/√Hz |
400 (µm/sec2)/√Hz |
|
Spectral Noise |
107 µg/√Hz |
1050 (µm/sec2)/√Hz |
|
Broadband Resolution |
0.0009 g rms |
0.009 m/s² rms |
|
Excitation Voltage |
22 to 30 VDC |
|
(J) Ground Isolated
|
|
ENG |
SI |
|
Electrical Isolation |
>100000000 Ohm |
|
|
Size - Height |
0.67 in |
23.6 mm |
|
Weight |
0.21 oz |
17.0 mm |
|
Frequency Range |
9000 Hz |
|
|
Frequency Range |
14000 Hz |
|
|
Resonant Frequency |
40 kHz |
|
|
Size - Hex |
0.44 in |
11.2 mm |
(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
|
|
ENG |
SI |
|
Temperature Range |
-10 to +200 °F |
-23 to +93 °C |
|
Output Bias Voltage |
7.5 to 13 VDC |
|
|
Excitation Voltage |
20 to 30 VDC |
|
(TLA) TEDS LMS International - Free Format
|
|
ENG |
SI |
|
|
Excitation Voltage |
20 to 30 VDC |
||
|
Output Bias Voltage |
7.5 to 13 VDC |
||
|
Temperature Range |
-10 to +200 °F |
-23 to +93 °C |
|
(TLB) TEDS LMS International - Automotive Format
|
|
ENG |
SI |
|
|
Output Bias Voltage |
7.5 to 13 VDC |
||
|
Temperature Range |
-10 to +200 °F |
-23 to +93 °C |
|
|
Excitation Voltage |
20 to 30 VDC |
||
(TLC) TEDS LMS International - Aeronautical Format
|
|
ENG |
SI |
|
|
Excitation Voltage |
20 to 30 VDC |
||
|
Output Bias Voltage |
7.5 to 13 VDC |
||
|
Temperature Range |
-10 to +200 °F |
-23 to +93 °C |
|
(W) Water Resistant Cable
