Accelerometer ICP® Model 353B03
Platinum Stock Products; General purpose, quartz shear ICP® accel.,
10 mV/g, 1 to 7k Hz, 10-32 side conn.
- Sensitivity: (±5%)10 mV/g (1.02 mV/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
- Broadband Resolution: 0.003 g rms (0.03 m/s² rms)
- Frequency Range: (±5%)1 to 7000 Hz
- Sensing Element: Quartz
- Weight: 10.5 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±5 %) [4] |
10 mV/g |
1,02 mV/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 %) |
1 to 7000 Hz |
1 to 7000 Hz |
|
Frequency Range (±10 %) |
|
|
|
Frequency Range (±3 dB) |
0.35 to 20000 Hz |
0.35 to 20000 Hz |
|
Resonant Frequency |
≥38 kHz |
≥38 kHz |
|
Broadband Resolution (1) [2] |
0.003 g rms |
0.03 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity [3] |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±10000 g pk |
±98100 m/s² pk |
|
Temperature Range (Operating) |
-65 to +250 °F |
-54 to +121 °C |
|

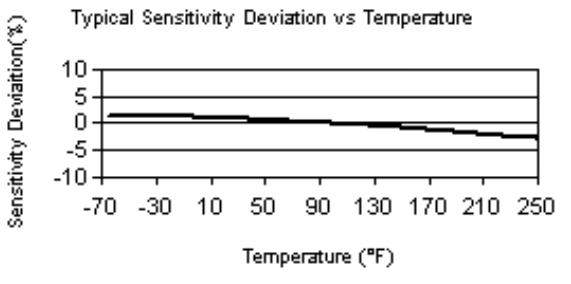

Temperature Response [2] [3] |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.0005 g/µε |
0.005 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤100 Ohm |
≤100 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
Discharge Time Constant |
0.5 to 2.6 sec |
0.5 to 2.6 sec |
|
Settling Time |
<5 sec |
<5 sec |
|
Spectral Noise (1 Hz) [2] |
2800 µg/√Hz |
27468 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
700 µg/√Hz |
6867 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
180 µg/√Hz |
1766 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
64 µg/√Hz |
628 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Size - Height |
|
20.6 mm |
|
Size - Hex |
|
12.7 mm |
|
Weight [2] |
|
10.5 gm |
|
Sensing Element |
Quartz |
Quartz |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
10-32 Female |
10-32 Female |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] B and Q options supplied with a sensitivity tolerance of ± 10 %.
[5] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
080A |
Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder |
1 |
|
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu |
1 |
Optional Versions
(B) Low bias electronics
|
|
ENG |
SI |
|
Output Bias Voltage |
4.5 to 7.5 VDC |
|
|
Excitation Voltage |
12 to 30 VDC |
|
|
Constant Current Excitation |
1 to 20 mA |
|
|
Measurement Range |
300 g pk |
2943 m/s² pk |
(J) Ground Isolated
|
|
ENG |
SI |
|
Electrical Isolation |
>100000000 Ohm |
|
|
Size - Height |
|
21.8 mm |
|
Frequency Range |
1 to 5000 Hz |
|
|
Frequency Range |
0.7 to 9000 Hz |
|
|
Resonant Frequency |
22 kHz |
|
|
Size - Hex |
|
12.7 mm |
(Q) Extended discharge time constant
|
|
ENG |
SI |
|
Discharge Time Constant |
>10 sec |
|
|
Frequency Range |
0.1 to 7000 Hz |
|
|
Frequency Range |
0.07 to 11000 Hz |
|
|
Settling Time |
45 sec |
|
(W) Water Resistant Cable
