Accelerometer ICP® Model 393С12
Seismic, ceramic shear ICP® accel., 10 V/g, 0.15 to 1k Hz, 2-pin top conn.
The high sensitivity and low noise allows for measurement of micro-vibration.
- Sensitivity: (±10%) 10 V/g (1019.4 mV/(m/s²))
- Measurement Range: ±0.5 g pk (±4.9 m/s² pk)
- Broadband Resolution: 0.000008 g rms (0.00008 m/s² rms)
- Frequency Range: (±5%) 0.15 to 1000 Hz
- Sensing Element: Ceramic
- Weight: 210 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
10000 mV/g |
1019.4 mV/(m/s²) |
|
Measurement Range |
±0.5 g pk |
±4.9 m/s² pk |
|
Frequency Range (±5 %) |
|
|
|
Frequency Range (±10 %) |
|
|
|
Frequency Range (±3 dB) |
|
|
|
Resonant Frequency |
≥10000 Hz |
≥10000 Hz |
|
Broadband Resolution (1) [2] |
0.000008 g rms |
0.00008 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤7 % |
≤7 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range (Operating) |
-50 to +180 °F |
-45 to +82 °C |
|

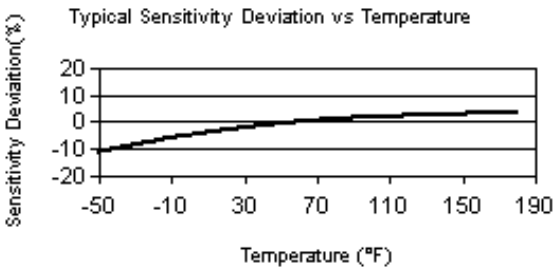

Temperature Response |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.0005 g/µε |
|
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤1500 Ohm |
≤1500 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
Discharge Time Constant |
≥3.5 sec |
≥3.5 sec |
|
Settling Time |
<60 sec |
<60 sec |
|
Spectral Noise (1 Hz) [2] |
1.3 µg/√Hz |
12.7 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
0.32 µg/√Hz |
3.1 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
0.13 µg/√Hz |
1.3 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
|
1 (µm/sec2)/√Hz |
|
Electrical Isolation (Case) |
≥100000000 Ohm |
≥100000000 Ohm |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Stainless Steel |
Stainless Steel |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Hex |
1 3/16 in |
30.2 mm |
|
Size - Height |
2 3/16 in |
55.6 mm |
|
Weight [2] |
7.4 oz |
210.0 gm |
|
Electrical Connector |
2-Pin MIL-C-5015 |
2-Pin MIL-C-5015 |
|
Electrical Connection Position |
Top |
Top |
|
Mounting |
1/4-28 Female |
1/4-28 Female |
|
Mounting Torque |
2 to 5 ft-lb |
3 to 7 Nm |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
ACS-4 |
Single axis, low frequency phase and amplitude response cal from 0.5 to 10 Hz, (requires ACS-1 and minimum sensitivity of 20 mV/g) |
1 |
|
081B20 |
Mounting stud, 1/4-28 to 1/4-28 x 0.365" long, BeCu w/shoulder |
1 |
|
085A31 |
Protective insulated boot |
1 |
|
M081B20 |
Metric mounting stud, 1/4-28 to M6 x 0.75, BeCu w/shoulder |
1 |
