Accelerometer ICP® Model TLD333B30
Platinum Stock Products; Modal array, ceramic shear ICP® accel,
100 mV/g, 0.5 to 3k Hz, 10-32 side conn., stud mount.
- Sensitivity: (±10%) 100 mV/g (10.2 mV/(m/s²))
- Measurement Range: ±50 g pk (±490 m/s² pk)
- Broadband Resolution: 0.00015 g rms (0.0015 m/s² rms)
- Frequency Range: (±5%) 0.5 to 3000 Hz
- Sensing Element: Ceramic
- Weight: 4.0 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
100 mV/g |
10.2 mV/(m/s²) |
|
Measurement Range |
±50 g pk |
±490 m/s² pk |
|
Frequency Range (±5 %) |
|
|
|
Resonant Frequency |
≥40 kHz |
≥40 kHz |
|
Phase Response (±5 °) (at 70°F [21°C]) |
2 to 3000 Hz |
2 to 3000 Hz |
|
Broadband Resolution (1) [2] |
0.00015 g rms |
0.0015 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity [3] |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range (Operating) |
0 to +150 °F |
-18 to +66 °C |
|
Temperature Response |

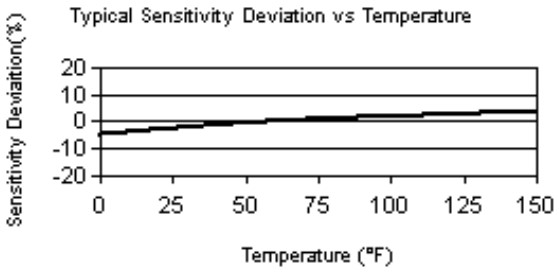

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.01 g/µε |
0.1 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤300 Ohm |
≤300 Ohm |
|
Output Bias Voltage |
7 to 12 VDC |
7 to 12 VDC |
|
Discharge Time Constant |
1.0 to 3.0 sec |
1.0 to 3.0 sec |
|
Settling Time (within 10% of bias) |
||
|
Spectral Noise (10 Hz) [2] |
39 µg/√Hz |
380 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
11 µg/√Hz |
110 (µm/sec2)/√Hz |
|
Spectral Noise (1000 Hz) [2] |
3.4 µg/√Hz |
33 (µm/sec2)/√Hz |
|
Spectral Noise (10 kHz) [2] |
1.4 µg/√Hz |
14 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Size - Height |
|
10.2 mm |
|
Size - Length |
|
16.0 mm |
|
Size - Width |
|
10.2 mm |
|
Weight [2] |
|
4.0 gm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
5-40 Female |
5-40 Female |
|
Mounting Torque |
4 to 5 in-lb |
45 to 56 N-cm |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] Transverse sensitivity is typically ≤ 3%.
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
080A25 |
Adhesive base, 0.438" hex, 5-40 tapped hole, aluminum hardcoat (for Series 333B30/B40/B50) |
1 |
|
080A90 |
Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) |
1 |
|
081A27 |
Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu |
1 |
|
M081A27 |
Metric mtg stud, 5-40 to M3 x 0.50 long |
1 |
Optional Versions
(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
|
|
ENG |
SI |
|
Output Bias Voltage |
7.5 to 13 VDC |
|
(TLA) TEDS LMS International - Free Format
|
|
ENG |
SI |
|
Output Bias Voltage |
7.5 to 13 VDC |
|
(TLB) TEDS LMS International - Automotive Format
|
|
ENG |
SI |
|
Output Bias Voltage |
7.5 to 13 VDC |
|
(TLC) TEDS LMS International - Aeronautical Format
|
|
ENG |
SI |
|
Output Bias Voltage |
7.5 to 13 VDC |
|
