Accelerometer ICP® Model TLD352A56
High sensitivity, miniature (1.8 gm),
ceramic shear ICP® accel., 100 mV/g,
with TEDS and 5-44 coaxial conn., TEDS Ver 1.0.
- Sensitivity: (±10%) 100 mV/g (10.2 mV/(m/s²))
- Measurement Range: ±50 g pk (±490 m/s² pk)
- Broadband Resolution: 0.0006 g rms (0.006 m/s² rms)
- Frequency Range: (±5%)0.5 to 10000 Hz
- Sensing Element: Ceramic
- Weight: 1.8 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
100 mV/g |
10.2 mV/(m/s²) |
|
Measurement Range |
±50 g pk |
±490 m/s² pk |
|
Frequency Range (±5 %) |
|
|
|
Frequency Range (±10 %) |
0.3 to 15000 Hz |
0.3 to 15000 Hz |
|
Resonant Frequency |
≥45 kHz |
≥45 kHz |
|
Broadband Resolution (1) [2] |
0.0006 g rms |
0.006 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
TEDS Compliant [3] |
Yes |
Yes |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range (Operating) |
-65 to +250 °F |
-54 to +121 °C |
|

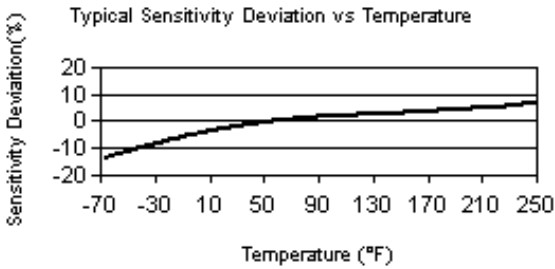

Temperature Response [2] |
See Graph %/°F |
See Graph %/°F |
|
Electrical |
|
|
|
Excitation Voltage |
22 to 30 VDC |
22 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
8.5 to 15.5 VDC |
8.5 to 15.5 VDC |
|
Discharge Time Constant |
0.5 to 1.5 sec |
0.5 to 1.5 sec |
|
Settling Time (within 10% of bias) |
<5 sec |
<5 sec |
|
Spectral Noise (10 Hz) [2] |
120 µg/√Hz |
1180 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
40 µg/√Hz |
392 (µm/sec2)/√Hz |
|
Spectral Noise (1000 Hz) [2] |
30 µg/√Hz |
294 (µm/sec2)/√Hz |
|
Spectral Noise (10 kHz) [2] |
10 µg/√Hz |
98.1 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Size - Height |
|
|
|
Size - Length |
|
14.5 mm |
|
Size - Width |
|
|
|
Weight [2] |
|
1.8 gm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Electrical Connector |
5-44 Coaxial |
5-44 Coaxial |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Adhesive |
Adhesive |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] TEDS Capable Digital Memory and Communication, compliant with IEEE P1451.4
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
039A31 |
Removal tool (for Model 352A56) |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
