Charge Output Accelerometer Model 357B03
Platinum Stock Products; High temp., ceramic shear, charge output accel.,
10 pC/g, 9k Hz, 10-32 side conn.(-95 F to +500 F).
- Sensitivity: (±15%)10 pC/g (1.02 pC/(m/s²))
- Measurement Range: ±2000 g pk (±19600 m/s² pk)
- Frequency Range: (+5%)9000 Hz
- Weight: 0.39 oz (11 gm)
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±15 %) |
10 pC/g |
1,02 pC /(m/s²) |
|
Measurement Range |
±2000 g pk |
±19600 m/s² pk |
|
Frequency Range (±5 %) [2] |
9000 Hz |
9000 Hz |
|
Frequency Range (±10 %) [2] |
12000 Hz |
12000 Hz |
|
Frequency Range (±3 dB) [2] |
18000 Hz |
18000 Hz |
|
Resonant Frequency |
≥38 kHz |
≥38 kHz |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±21000 g pk |
±206010 m/s² pk |
|
Temperature Range (Operating) |
-95 to +500 °F |
-71 to +260 °C |
|
Temperature Response [3] |

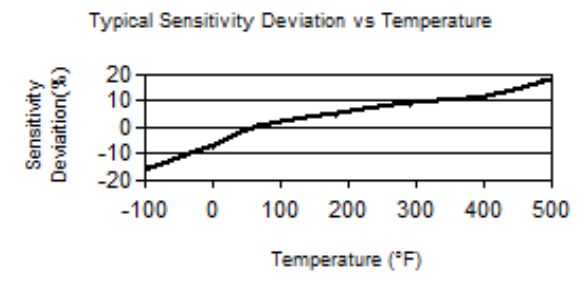

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [3] |
0.0002 g/µε |
0.002 (m/s²)/µε |
|
Electrical |
|
|
|
Capacitance [3] |
930 pF |
930 pF |
|
Insulation Resistance (at 500°F) [3] |
≥100000000 Ohm |
≥100000000 Ohm |
|
Insulation Resistance (at 70° F [21°C]) |
≥1000000000000 Ohm |
≥1000000000000 Ohm |
|
Output Polarity |
Negative |
Negative |
|
Physical |
|
|
|
Size - Height |
|
20.6 mm |
|
Size - Hex |
|
12.7 mm |
|
Weight [3] |
|
11 gm |
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
10-32 Female |
10-32 Female |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder |
1 |
|
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu |
1 |
Optional Versions
(J) Ground Isolated
|
|
ENG |
SI |
|
Electrical Isolation |
>100000000 Ohm |
|
|
Size - Height |
|
21.8 mm |
|
Frequency Range |
1 to 5000 Hz |
|
|
Frequency Range |
0.7 to 9000 Hz |
|
|
Resonant Frequency |
22 kHz |
|
|
Size - Hex |
|
12.7 mm |
(W) Water Resistant Cable
|
|
ENG |
SI |
|
Electrical Connector |
Sealed Integral Cable |
|
|
Electrical Connection Position |
Side |
|
