Charge Output Accelerometer Model 357B53
Charge output accel., 100 pC/g, 150g, 3kHz, 10-32 side conn.,
high temp. +550 F (+288 C), Radiation Hardened.
- Sensitivity: (±15%) 100 pC/g (10.2 pC/(m/s²))
- Measurement Range: ±150 g pk (±1470 m/s² pk)
- Frequency Range: (+5%) 3000 Hz
- Weight: 51 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±15 %) |
100 pC/g |
10.2 pC /(m/s²) |
|
Measurement Range |
±150 g pk |
±1470 m/s² pk |
|
Frequency Range (±5 %) [2] |
3000 Hz |
3000 Hz |
|
Frequency Range (±10 %) [2] |
3500 Hz |
3500 Hz |
|
Frequency Range (±3 dB) [2] |
5500 Hz |
5500 Hz |
|
Resonant Frequency |
≥12 kHz |
≥12 kHz |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±2000 g pk |
±19600 m/s² pk |
|
Temperature Range (Operating) |
-95 to +550 °F |
-71 to +288 °C |
|

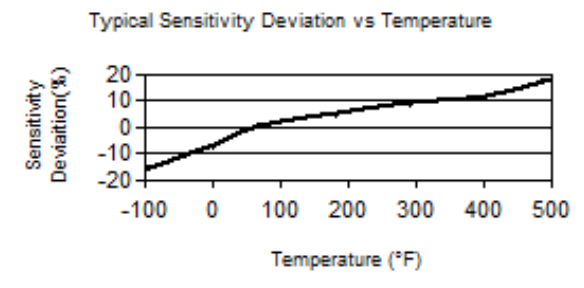

Temperature Response [3] |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [3] |
0.0002 g/µε |
0.002 (m/s²)/µε |
|
Radiation Exposure Limit (Integrated Gamma Flux) |
≤100000000 rad |
≤100000000 rad |
|
Radiation Exposure Limit (Integrated Gamma Flux) |
≤10000000000 N/cm² |
≤10000000000 N/cm² |
|
Electrical |
|
|
|
Capacitance [3] |
930 pF |
930 pF |
|
Insulation Resistance (at 550°F) [3] |
≥100000000 Ohm |
≥100000000 Ohm |
|
Insulation Resistance (at 70° F [21°C]) |
≥1000000000000 Ohm |
≥1000000000000 Ohm |
|
Output Polarity |
Negative |
Negative |
|
Electrical Isolation (Base) |
≥100000000 Ohm |
≥100000000 Ohm |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Hex |
3/4 in |
3/4 in |
|
Size - Height |
1.13 in |
|
|
Weight [3] |
1.8 oz |
51 gm |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
10-32 Female |
10-32 Female |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
081B05 |
Mounting stud, 10-32 to 10-32, 0.275" long, BeCu w/shoulder |
1 |
|
M081B05 |
Mounting stud, 10-32 to M6x0.75-6g, 0.275" long, BeCu |
1 |
