Charge Output Accelerometer Model 357B61
High temp., ceramic compression, charge output accel., 10 pC/g,
5kHz, 10-32 side conn. (-65F to +900F), supplied with 10-ft hardline cable.
- Sensitivity: (±10%) 10 pC/g (1.02 pC/(m/s²))
- Measurement Range: ±1000 g pk (±9810 m/s² pk)
- Frequency Range: (+5%) 5000 Hz
- Weight: 30 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
10 pC/g |
1,02 pC /(m/s²) |
|
Measurement Range |
±1000 g pk |
±9810 m/s² pk |
|
Frequency Range (±5 %) [2] |
5000 Hz |
5000 Hz |
|
Resonant Frequency |
≥23 kHz |
≥23 kHz |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤3 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range (Operating) |
-65 to +900 °F |
-54 to +482 °C |
|
Temperature Response [3] |

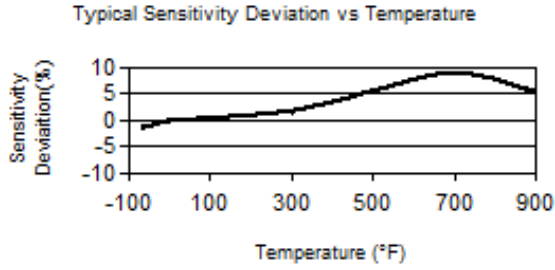

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [3] |
0.007 g/µε |
0.07 (m/s²)/µε |
|
Radiation Exposure Limit (Integrated Neutron Flux) |
1 E10 N/cm² |
1 E10 N/cm² |
|
Radiation Exposure Limit (Integrated Neutron Flux) |
1 E8 rad |
1 E8 rad |
|
Electrical |
|
|
|
Capacitance [3] |
630 pF |
630 pF |
|
Insulation Resistance (900° F [482° C]) |
≥100 kOhm |
≥100 kOhm |
|
Insulation Resistance (at 70° F [21°C]) |
≥100000000 Ohm |
≥100000000 Ohm |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Compression |
Compression |
|
Housing Material |
Inconel |
Inconel |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
1.0 in |
25.4 mm |
|
Size - Hex |
5/8 in |
5/8 in |
|
Weight [3] |
1.1 oz |
30 gm |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Side |
Side |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
[4] See PCB Declaration of Conformance PS081 for details.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
023A10 |
Hardline, mineral insulated, coaxial cable, 10-ft, 10-32 plug (900°F/482°C) to 10-32 jack (550°F/288°C) |
1 |
|
081A107 |
Mounting stud, 10-32 to 10-32, 0.275" long, Inconel w/shoulder |
1 |
|
M081A107 |
Mounting Stud, 10-32 to M6- 0.75, w/shoulder, Inconel |
1 |
