Charge Output Accelerometer Model 357C73
Charge output accel., 100 pC/g, 300 g, to 2 kHz, 2-pin conn.,
3-hole mount, to +900 F.
Sensor can be paired with any one of the charge amplifiers in the
Suggested Accessories section. If paired with a Model Number 422M182,
cable Model Numbers 013GNXXXGP and 045M19 should be used. If paired with a Model Number EX682A40, cable Model Numbers 013GNXXXGP and 045M21 should be used. Cable Model Number 013GNXXXGP is radiation-hardened for nuclear applications.
- Sensitivity: (±20%) 100 pC/g (10.2 pC/(m/s²))
- Measurement Range: ±300 g pk (±2943 m/s² pk)
- Frequency Range: (+5%) 2000 Hz
- Weight: 115 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
100 pC/g |
10.2 pC /(m/s²) |
|
Measurement Range |
±300 g pk |
±2943 m/s² pk |
|
Frequency Range (±5 %) [3] |
2000 Hz |
2000 Hz |
|
Resonant Frequency |
≥11 kHz |
≥11 kHz |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity [2] |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±1000 g pk |
±9810 m/s² pk |
|
Temperature Range (Operating) |
-65 to +900 °F |
-54 to +482 °C |
|
Temperature Response [4] |

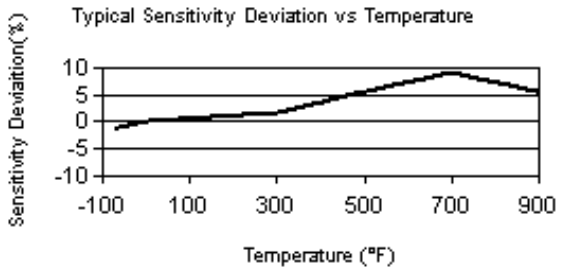

See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [4] |
0.033 g/µε |
|
|
Radiation Exposure Limit (Integrated Neutron Flux) |
1 E10 N/cm² |
1 E10 N/cm² |
|
Radiation Exposure Limit (Integrated Neutron Flux) |
1 E8 rad |
1 E8 rad |
|
Electrical |
|
|
|
Capacitance [4] |
1860 pF |
1860 pF |
|
Capacitance (Pin to Case) [4] |
26 pF |
26 pF |
|
Capacitance (Unbalance Between Pins) |
≤2 pF |
≤2 pF |
|
Insulation Resistance (Pin to Case 70° F) [4] |
>100000000 Ohm |
>100000000 Ohm |
|
Insulation Resistance (Pin to Pin 70° F) |
>1000000000 Ohm |
>1000000000 Ohm |
|
Insulation Resistance (Pin to Pin 900° F) |
>100 kohm |
>100 kohm |
|
Output Polarity |
Negative |
Negative |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
1.57 in |
39.9 mm |
|
Size - Diameter |
0.75 in |
19.0 in |
|
Weight [4] |
4.0 oz |
115 gm |
|
Electrical Connector |
7/16-27 2-Pin |
7/16-27 2-Pin |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
Through Holes (3) |
Through Holes (3) |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Transverse sensitivity is typically ≤ 3%.
[3] Low frequency response is determined by external signal conditioning electronics.
[4] Typical.
Accessories
|
Supplied |
||
|
ACS-1 |
Single axis amplitude response calibration from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
081A99 |
Socket head cap screw, 8-32 x 0.5" long, 18-8 stainless steel |
1 |
