Shock Accelerometer ICP® Model 350C03
ICP® Accel., Shock, 0.5 mV/g, 10,000 g, 0.4 to 10 kHz, LP-filter, 10-32 top connection.
- Sensitivity: (±30%) 0.5 mV/g (0.05 mV/(m/s²))
- Measurement Range: ±10000 g pk (±98000 m/s² pk)
- Frequency Range: (±1dB) 0.4 to 10000 Hz
- Electrical Filter Corner Frequency: (-3dB)17 kHz
- Mechanical Filter Resonant Frequency: 35 kHz
- Weight: 5.4 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±30 %) |
|
|
|
Measurement Range |
±10000 g pk |
±98000 m/s² pk |
|
Frequency Range (±1dB) |
0.4 to 10000 Hz |
0.4 to 10000 Hz |
|
Frequency Range (-3dB) [2] |
0.2 to 25000 Hz |
0.2 to 25000 Hz |
|
Electrical Filter Corner Frequency (-3 dB) [1] [3] |
17 kHz |
17 kHz |
|
Mechanical Filter Resonant Frequency [1] [4] |
35 kHz |
35 kHz |
|
Resonant Frequency |
≥100 kHz |
≥100 kHz |
|
Broadband Resolution (1) [1] |
|
0.39 m/s² rms |
|
Non-Linearity (per 10000g) |
|
|
|
Transverse Sensitivity |
≤7 % |
≤7 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±50000 g pk |
±490000 m/s² pk |
|
Temperature Range (Operating) |
0 to +150 °F |
-18 to +66 °C |
|

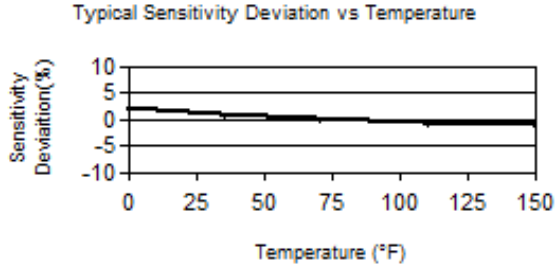

Temperature Response [1] [5] |
See Graph %/°F |
See Graph %/°F |
|
Electrical |
|
|
|
Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
8 to 14 VDC |
8 to 14 VDC |
|
Discharge Time Constant [1] |
1.0 to 2.0 sec |
1.0 to 2.0 sec |
|
Settling Time (within 10% of bias) |
<10 sec |
<1 sec |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
|
9.5 mm |
|
Size - Diameter |
1.15 in |
29.2 mm |
|
Weight [2] |
|
5.4 gm |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Electrical Connection Position |
Top |
Top |
|
Mounting |
Stud |
Stud |
|
Mounting Thread |
1/4-28 Male |
1/4-28 Male |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Typical.
[2] Typical corner frequency for coupled electrical and mechanical filters.
[3] Electrical filter is a second order filter.
[4] Amplitude at resonance is +9 dB.
[5] See PCB Declaration of Conformance 023 for details.
Accessories
|
Supplied |
||
|
ACS-14 |
High G accel. verification using Hopkinson bar to max g range, (NIST traceable). |
1 |
|
ACS-22 |
**OBSOLETE see ACS-22/ACS-14** Amplitude response cal for shock accel, 100 Hz to upper 1 dB freq (max 15 kHz) |
1 |
Optional Versions
(M) Metric Mount
|
|
ENG |
SI |
|
Mounting Thread |
M6 x 0.75 Male |
|
