Triaxial Charge Output Accelerometer Model 356A71
Platinum Stock Product; Triaxial, miniature (23 gm),
charge output accel., 10 pC/g, 5k Hz, (3pcs) 10-32 conn.
- Sensitivity: (±30%) 10 pC/g (1.02 pC/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
- Frequency Range: (+5%) 5 kHz
- Temperature Range: -70 to +254 °C
- Electrical Connector: 10-32 Coaxial
- Weight: 22.7 gm
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±30 %) |
10 pC/g |
1.02 pC/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 %) [2] |
5000 Hz |
5000 Hz |
|
Frequency Range (±10 %) [2] |
7000 Hz |
7000 Hz |
|
Resonant Frequency |
≥25 kHz |
≥25 kHz |
|
Non-Linearity [2] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050m/s² pk |
|
Temperature Range (Operating) |
-95 to +490 °F |
-70 to +254 °C |
|

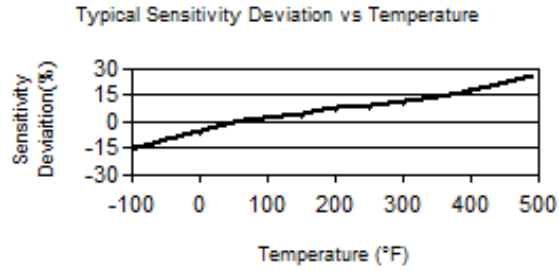

Temperature Response [3] |
See Graph %/°F |
See Graph %/°F |
|
Electrical |
|
|
|
Capacitance [3] |
690 pF |
690 pF |
|
Insulation Resistance (at 70° F [21° C]) |
>1000000000000 Ohm |
>1000000000000 Ohm |
|
Insulation Resistance (at 490° F [254° C]) [3] |
>100000000 Ohm |
>100000000 Ohm |
|
Output Polarity |
Negative |
Negative |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Length |
|
24.4 mm |
|
Size - Width |
1.0 in |
25.4 mm |
|
Size - Height |
|
12.7 mm |
|
Weight [3] |
|
22.7 gm |
|
Electrical Connector |
10-32 Coaxial Jack |
10-32 Coaxial Jack |
|
Mounting |
Through Hole |
Through Hole |
|
Mounting Torque |
8 to 10 in-lb |
90 to 113 N-cm |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Low frequency response is determined by external signal conditioning electronics.
[3] Typical.
Accessories
|
Supplied |
||
|
039A22 |
Allen wrench, 7/64" hex head (for use with 6-32 thd cap screws) |
1 |
|
080A170 |
Adhesive mtg base (for Model 356A71) 1 inch hex x 0.35 in thick, 1/4-28 thread in base x 0.2 in with 2 x 6-32 holes thru |
1 |
|
080A90 |
Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) |
1 |
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
081A94 |
Mounting screw, 6-32 UNC, 0.75" long |
2 |
Optional Versions
(M) Metric Mount
|
Accessories: |
|||
|
Supplied |
M080A170 |
Adhesive mounting base |
1 |
|
Supplied |
M081A94 |
Mounting Stud, M3 X 0.50 X 20mm |
2 |
|
Supplied |
M039A22 |
Allen wrench for use with M3 thread |
1 |
