Triaxial ICP® Accelerometer Model 339B32
UHT-12™, ICP® accelerometer, low-profile, 10 mV/g, 2 to 10k Hz,
titanium housing, mini 4-pin connector, low temperature coefficient LTC ,
+325F Temp Rating, LP Filter.
- Electrical Filter Corner Frequency: >14 kHz
- Sensitivity: (±10%) 10 mV/g (1.02 mV/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
- Electrical Connector: 8-36 4-Pin
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
10.0 mV/g |
1.02 mV/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 %) |
2 to 10000 Hz |
2 to 10000 Hz |
|
Resonant Frequency |
≥45 kHz |
≥45 kHz |
|
Filter Type (single pole) |
Low Pass |
Low Pass |
|
Electrical Filter Roll-off |
6 dB/octave |
6 dB/octave |
|
Electrical Filter Corner Frequency |
>14 kHz |
>14 kHz |
|
Broadband Resolution (1) [1] |
0.003 g rms |
0.029 m/s² rms |
|
Non-Linearity |
≤0.5 % |
≤0.5 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050m/s² pk |
|
Temperature Range (Operating) |
-65 to +325 °F |
-54 to +163 °C |
|

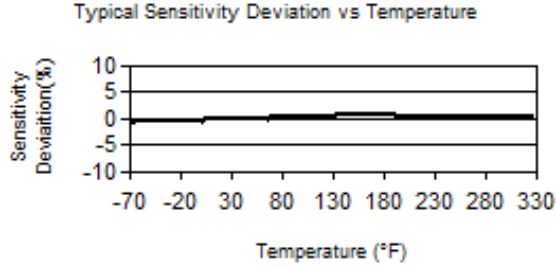

Temperature Response [1] |
See Graph %/°F |
See Graph %/°F |
|
Temperature Coefficient of Sensitivity |
≤0.011 %/°F |
≤0.02 %/°C |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
7 to 12 VDC |
7 to 12 VDC |
|
Discharge Time Constant |
|
|
|
Settling Time (within 10% of bias) |
<1.5 sec |
<1.5 sec |
|
Spectral Noise (1 Hz) [1] |
1187 µg/√Hz |
11644 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [1] |
178 µg/√Hz |
1746 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [1] |
48 µg/√Hz |
471 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [1] |
25 µg/√Hz |
245 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Sensing Element |
UHT-12™ |
UHT-12™ |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
|
7.0 mm |
|
Size - Length |
|
12.0 mm |
|
Size - Width |
|
12.0 mm |
|
Weight [2] |
|
3.6 gm |
|
Electrical Connector |
8-36 4-Pin |
8-36 4-Pin |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Adhesive |
Adhesive |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Typical.
[2] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
034K10 |
4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z) |
1 |
|
080A90 |
Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) |
1 |
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
