Triaxial ICP® Accelerometer Model 354B04
Triaxial, Thru-hole mtg, Ceramic shear ICP® accel, 10 mV/g, 0.6 to10 kHz,
Case isolated, TEDS Ver 1.0, 4-pin connector, incl. both 6-32 & M3 fasteners.
354B04 improves upon the 354A04 with extended frequency response to 10 kHz at 5%
- Sensitivity: (±5%)10.0 mV/g (1.02 mV/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
- Electrical Connector: 1/4-28 4-Pin (1/4-28 4-Pin)
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±5 %) |
10.0 mV/g |
1.02 mV/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 %) |
0.6 to 10000 Hz |
0.6 to 10000 Hz |
|
Resonant Frequency |
≥25 kHz |
≥25 kHz |
|
Broadband Resolution (1) [2] |
0.0005 g rms |
0.005 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
TEDS Compliant (Per IEEE 1451.4) [3] |
yes |
yes |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49000 m/s² pk |
|
Temperature Range (Operating) |
-65 to +200 °F |
-54 to +93 °C |
|

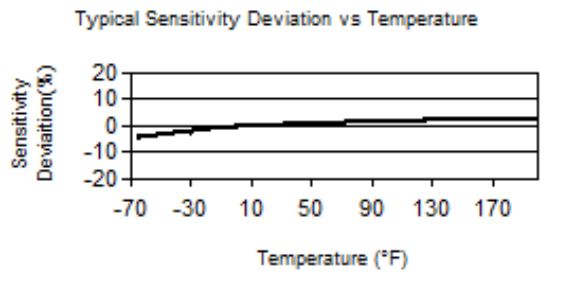

Temperature Response [2] |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.004 g/µε |
0.04 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
20 to 30 VDC |
20 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤100 Ohm |
≤100 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
Discharge Time Constant |
0.8 to 2.4 sec |
0.8 to 2.4 sec |
|
Settling Time (within 10% of bias) |
<5 sec |
<5 sec |
|
Spectral Noise (1 Hz) [2] |
170 µg/√Hz |
1668 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
25 µg/√Hz |
245 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
8 µg/√Hz |
78 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
6 µg/√Hz |
59 (µm/sec2)/√Hz |
|
Spectral Noise (10 kHz) [2] |
4 µg/√Hz |
39 (µm/sec2)/√Hz |
|
Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
|
9.7 mm |
|
Size - Length |
0.82 in |
20.7 mm |
|
Size - Width |
0.82 in |
20.7 mm |
|
Weight |
|
14.5 gm |
|
Electrical Connector |
1/4-28 4-Pin |
1/4-28 4-Pin |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Through Hole |
Through Hole |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] TEDS Capable Digital Memory and Communication, compliant with IEEE 1451.4
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
039A25 |
Removal tool for M3 connector |
1 |
|
081A105 |
6-32 x 1/2 inch SHCS 18-8 |
1 |
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
M039A22 |
Allen wrench for use with M3 thds |
1 |
|
M081A103 |
M3x0.5 mm threaded black-oxide alloy steel socket head cap screw, 10 mm long with stainless steel washer (for 354x04/05) |
1 |
