Triaxial ICP® Accelerometer Model 354C02
Triaxial, thru-hole mtg, ceramic shear ICP® accel., 10 mV/g, 0.5 to 2k Hz,
ground isolated, 4-pin conn.
- Sensitivity: (±10%)10 mV/g (1.02 mV/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
- Electrical Connector: 1/4-28 4-Pin
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
10.0 mV/g |
1.02 mV/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 %) |
|
|
|
Frequency Range (±10 %) |
|
|
|
Frequency Range (±3 dB) |
|
|
|
Resonant Frequency |
≥12 kHz |
≥12 kHz |
|
Broadband Resolution (1) [2] |
0.0005 g rms |
0.005 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49000 m/s² pk |
|
Temperature Range (Operating) [3] |
-65 to +250 °F |
-54 to +121 °C |
|

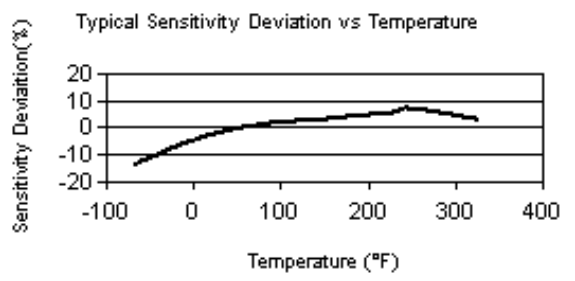

Temperature Response |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.0005 g/µε |
0.005 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤100 Ohm |
≤100 Ohm |
|
Output Bias Voltage |
8 to 12 VDC |
8 to 12 VDC |
|
Discharge Time Constant |
0.8 to 2.0 sec |
0.8 to 2.0 sec |
|
Settling Time (within 10% of bias) |
<10 sec |
<10 sec |
|
Spectral Noise (1 Hz) [2] |
150 µg/√Hz |
1472 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
23 µg/√Hz |
226 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
10 µg/√Hz |
98 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
5 µg/√Hz |
49 (µm/sec2)/√Hz |
|
Electrical Isolation (Case) |
>100000000 Ohm |
>100000000 Ohm |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Welded Hermetic |
Welded Hermetic |
|
Size - Hex |
0.815 in |
20.7 mm |
|
Size - Height |
0.45 in |
11.4 mm |
|
Weight |
|
15.5 gm |
|
Electrical Connector |
1/4-28 4-Pin |
1/4-28 4-Pin |
|
Electrical Connection Position |
Side |
Side |
|
Mounting |
Through Hole |
Through Hole |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] 250° F to 325° F data valid with HT option only.
[4] TEDS option adds 1.0 VDC to bias voltage.
[5] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
039A23 |
Allen wrench, 5/32" hex head (for use with 10-32 thd cap screws) |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
081B60 |
Off ground socket head cap screw assembly, 10-32 UNF-2A thd., 0.63 in length, stainless steel |
|
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
Optional Versions
(A) Adhesive Mount
|
Accessories: |
|||
|
Supplied |
080A90 |
Quick Bonding Gel |
1 |
(HT) High temperature, extends normal operation temperatures
|
|
ENG |
SI |
|
Frequency Range (±5 %) |
2 to 2000 Hz |
|
|
Frequency Range (±10 %) |
1 to 4000 Hz |
|
|
Frequency Range (±3 dB) |
0.5 to 6000 Hz |
|
|
Temperature Range |
-65 to +325 °F |
-54 to +163 °C |
|
Discharge Time Constant |
0.4 to 1.0 sec |
|
|
Broadband Resolution |
0.0010 g rms |
0.010 µm/sec2 rms |
|
Spectral Noise (1 Hz) |
300 µg/√Hz |
2940 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) |
120 µg/√Hz |
1176 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) |
60 µg/√Hz |
588 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) |
10 µg/√Hz |
98 (µm/sec2)/√Hz |
|
Output Bias Voltage |
10 to 14.5 VDC |
|
|
Excitation Voltage |
22 to 30 VDC |
|
(M) Metric Mount
|
Accessories: |
|||
|
Supplied |
M039A23 |
Allen wrench, 4mm hex |
1 |
|
Supplied |
M081B60 |
Accessory for Vibration Division Product |
1 |
(T) TEDS Capable of Digital Memory and Communication Compliant with IEEE P1451.4
|
|
ENG |
SI |
|
Output Bias Voltage |
8.5 to 14.5 VDC |
|
|
Excitation Voltage |
22 to 30 VDC |
|
(TLA) TEDS LMS International - Free Format
|
|
ENG |
SI |
|
Output Bias Voltage |
8.5 to 14.5 VDC |
|
|
Excitation Voltage |
22 to 30 VDC |
|
(TLB) TEDS LMS International - Automotive Format
|
|
ENG |
SI |
|
Output Bias Voltage |
8.5 to 14.5 VDC |
|
|
Excitation Voltage |
22 to 30 VDC |
|
(TLC) TEDS LMS International - Aeronautical Format
|
|
ENG |
SI |
|
Output Bias Voltage |
8.5 to 14.5 VDC |
|
|
Excitation Voltage |
22 to 30 VDC |
|
(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
|
|
ENG |
SI |
|
Output Bias Voltage |
8.5 to 14.5 VDC |
|
|
Excitation Voltage |
22 to 30 VDC |
|
