Triaxial ICP® Accelerometer Model 356A32
Platinum Stock Product; Triaxial mini (5 gm) high sensitivity, ICP® accel.,
100 mV/g, 1 Hz to 4k Hz, titanium hsg, 10 ft mating cable supplied.
- Sensitivity: (±10%) 100 mV/g (10,2 mV/(m/s²))
- Measurement Range: ±50 g pk (±491 m/s² pk)
- Electrical Connector: 8-36 4-Pin
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
100.0 mV/g |
10.2 mV/(m/s²) |
|
Measurement Range |
±50 g pk |
±491 m/s² pk |
|
Frequency Range (±5 %) |
1 to 4000 Hz |
1 to 4000 Hz |
|
Frequency Range (±10 %) |
0.7 to 5000 Hz |
0.7 to 5000 Hz |
|
Resonant Frequency |
≥25 kHz |
≥25 kHz |
|
Broadband Resolution (1) [2] |
0.0003 g rms |
0.003 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±5000 g pk |
±49050 m/s² pk |
|
Temperature Range (Operating) |
-65 to +250 °F |
-54 to +121 °C |
|

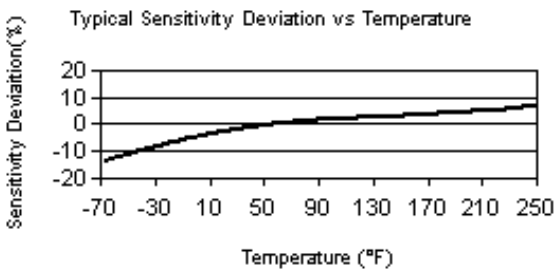

Temperature Response [2] |
See Graph %/°F |
See Graph %/°F |
|
Base Strain Sensitivity [2] |
0.001 g/µε |
0.01 (m/s²)/µε |
|
Electrical |
|
|
|
Excitation Voltage |
24 to 30 VDC |
24 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
7 to 16 VDC |
7 to 16 VDC |
|
Discharge Time Constant |
|
|
|
Settling Time (within 10% of bias) |
<5 sec |
<5 sec |
|
Spectral Noise (1 Hz) [2] |
95 µg/√Hz |
932 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
20 µg/√Hz |
196 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
6 µg/√Hz |
58.9 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
3 µg/√Hz |
29.4 (µm/sec2)/√Hz |
|
Spectral Noise (10 kHz) [2] |
2 µg/√Hz |
19.6 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
|
11.4 mm |
|
Size - Length |
|
11.4 mm |
|
Size - Width |
|
11.4 mm |
|
Weight [2] |
|
5.3 gm |
|
Electrical Connector |
8-36 4-Pin |
8-36 4-Pin |
|
Electrical Connection Position |
Side |
Side |
|
Mounting Thread |
5-40 Female |
5-40 Female |
|
Mounting Torque |
4 to 5 in-lb |
45 to 56 N-cm |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
034K10 |
4-conductor, low noise, shielded FEP cable, 10-ft, mini 4-socket plug to (3) BNC plugs (labeled X, Y, Z) |
1 |
|
080A |
Adhesive mtg base, 0.5" hex x 0.187" thk, 10-32 tapped hole, aluminum w/isolation hardcoat finish |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
081A27 |
Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu |
1 |
|
080A90 |
Quick bond Gel (for use with accel adhesive mtg bases to fill gaps on rough surfaces) |
1 |
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
M081A27 |
Metric mtg stud, 5-40 to M3 x 0.50 long |
|
Optional Versions
(TLC) TEDS LMS International - Aeronautical Format
|
|
ENG |
SI |
|
Weight |
0.23 oz |
6.4 gm |
|
Mounting |
Adhesive |
|
|
Output Bias Voltage |
7.7 to 17.0 VDC |
|
(TLD) TEDS Capable of Digital Memory and Communication Compliant with IEEE 1451.4
|
|
ENG |
SI |
|
Weight |
0.23 oz |
6.4 gm |
|
Mounting |
Adhesive |
|
|
Output Bias Voltage |
7.7 to 17.0 VDC |
|
