Triaxial ICP® Accelerometer Model 356A19
Triaxial, miniature (4 gm), ceramic shear ICP® accel 10 mV/g, 1 to 13k Hz (± 5%),
TEDS 1.0, 5 ft attached cable, low outgassing excl. extension cable.
- Sensitivity: (±10%) 10 mV/g (1.02 mV/(m/s²))
- Measurement Range: ±500 g pk (±4905 m/s² pk)
|
|
ENG |
SI |
|
Performance |
|
|
|
Sensitivity (±10 %) |
10.0 mV/g |
1.01 mV/(m/s²) |
|
Measurement Range |
±500 g pk |
±4905 m/s² pk |
|
Frequency Range (±5 % |
1 to 13000 Hz |
1 to 13000 Hz |
|
Frequency Range (±10 %) |
0,61 to 5000 Hz |
0,61 to 5000 Hz |
|
Resonant Frequency |
≥55 kHz |
≥55 kHz |
|
Broadband Resolution (1) [2] |
0.006 g rms |
0.06 m/s² rms |
|
Non-Linearity [1] |
≤1 % |
≤1 % |
|
Transverse Sensitivity |
≤5 % |
≤5 % |
|
TEDS Compliant (Per IEEE 1451.4) [3] |
yes |
yes |
|
Environmental |
|
|
|
Overload Limit (Shock) |
±10000 g pk |
±98100 m/s² pk |
|
Temperature Range (Operating) |
-65 to +250 °F |
-54 to +121 °C |
|
Temperature Response [2] |

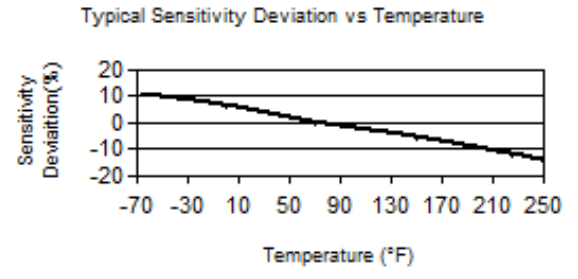

See Graph %/°F |
See Graph %/°F |
|
Electrical |
|
|
|
Excitation Voltage |
18 to 30 VDC |
18 to 30 VDC |
|
Constant Current Excitation |
2 to 20 mA |
2 to 20 mA |
|
Output Impedance |
≤200 Ohm |
≤200 Ohm |
|
Output Bias Voltage |
8 to 13 VDC |
8 to 13 VDC |
|
Discharge Time Constant |
|
|
|
Settling Time (within 10% of bias) |
<5 sec |
<5 sec |
|
Spectral Noise (1 Hz) [2] |
500 µg/√Hz |
4905 (µm/sec2)/√Hz |
|
Spectral Noise (10 Hz) [2] |
160 µg/√Hz |
1570 (µm/sec2)/√Hz |
|
Spectral Noise (100 Hz) [2] |
75 µg/√Hz |
736 (µm/sec2)/√Hz |
|
Spectral Noise (1 kHz) [2] |
65 µg/√Hz |
638 (µm/sec2)/√Hz |
|
Physical |
|
|
|
Sensing Element |
Ceramic |
Ceramic |
|
Sensing Geometry |
Shear |
Shear |
|
Housing Material |
Titanium |
Titanium |
|
Sealing |
Hermetic |
Hermetic |
|
Size - Height |
|
10.2 mm |
|
Size - Length |
|
10.2 mm |
|
Size - Width |
|
10.2 mm |
|
Weight (without cable) [2] |
|
4.0 gm |
|
Electrical Connector |
1/4-28 4-Pin Jack |
1/4-28 4-Pin Jack |
|
Electrical Connection Position |
Side |
Side |
|
Cable Length |
5 ft |
1.5 m |
|
Cable Type |
034 4-cond Shielded |
034 4-cond Shielded |
|
Mounting Thread |
5-40 Female |
5-40 Female |
|
Mounting Torque |
4 to 5 in-lb |
45 to 56 N-cm |
* All specifications are at room temperature unless otherwise specified.
Specification Notes
[1] Zero-based, least-squares, straight line method.
[2] Typical.
[3] TEDS Capable Digital Memory and Communication, compliant with IEEE 1451.4
[4] See PCB Declaration of Conformance PS023 for details.
Accessories
|
Supplied |
||
|
034G05 |
4-conductor, low noise, shielded FEP cable, 5-ft, 4-socket plug to (3) BNC plugs (labeled X Y Z) |
1 |
|
080A109 |
Petro Wax, one square, 1" x 1" x 0.25" |
1 |
|
080A15 |
Adhesive mtg base, 0.312" hex x 0.125" thk, 5-40 tapped hole, aluminum w/isolation hardcoat finish |
1 |
|
081A27 |
Mounting stud, 5-40 to 5-40 thds, w/o shoulder, BeCu |
1 |
|
ACS-1T |
Triaxial amplitude response calibration, from 10 Hz to upper 5% frequency, NIST traceable |
1 |
|
M081A27 |
Metric mtg stud, 5-40 to M3 x 0.50 long |
1 |
